Description

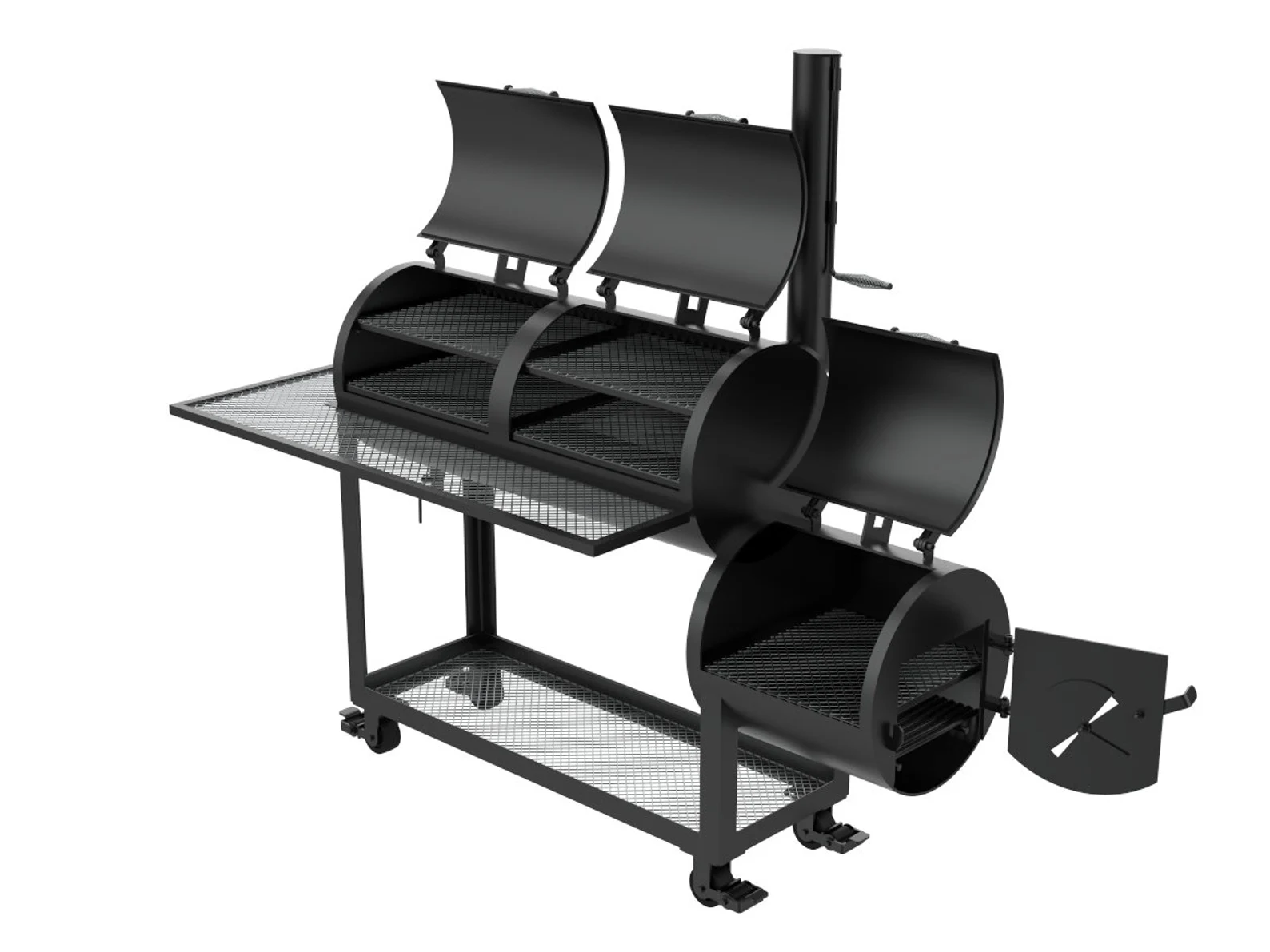

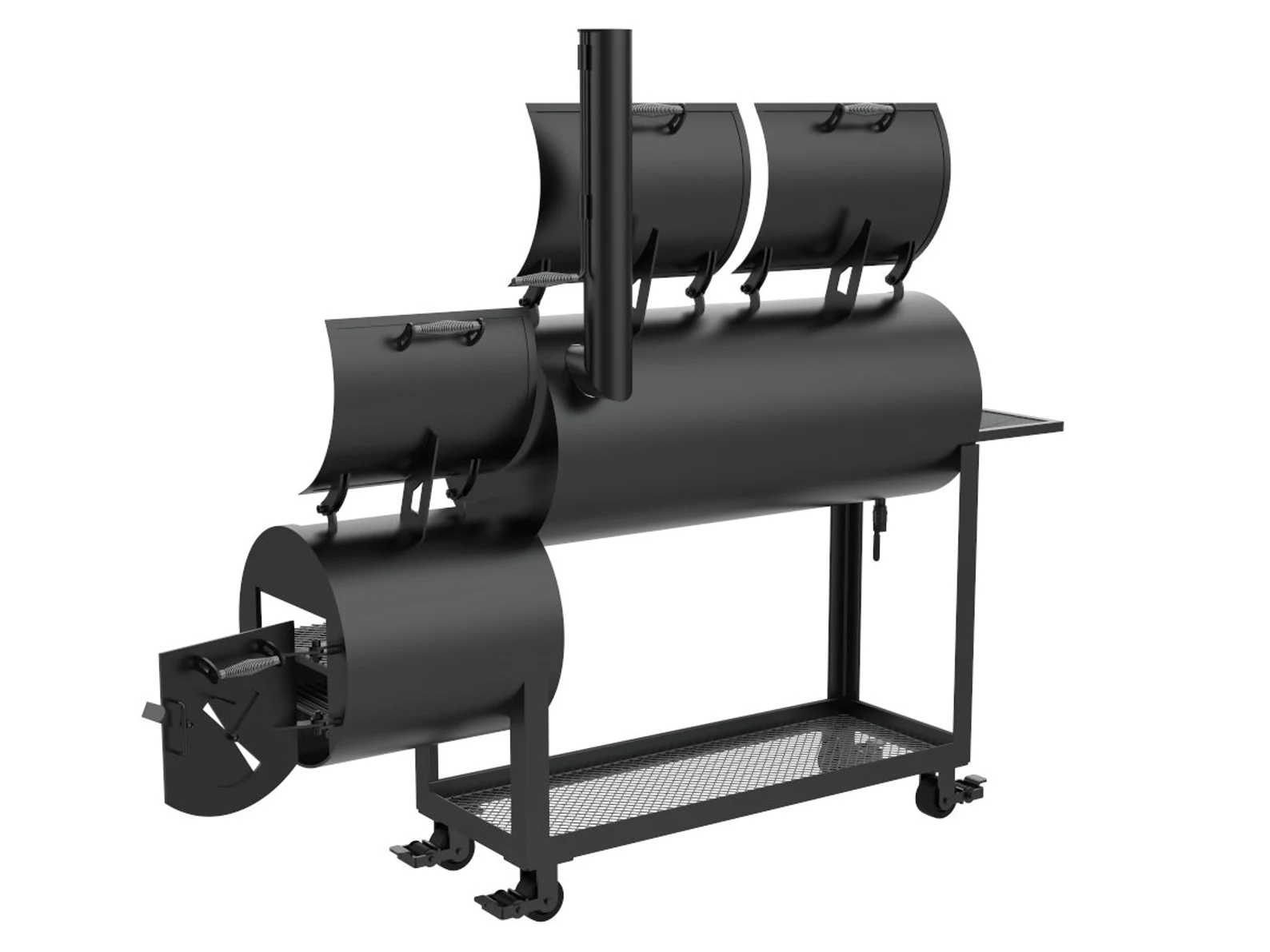

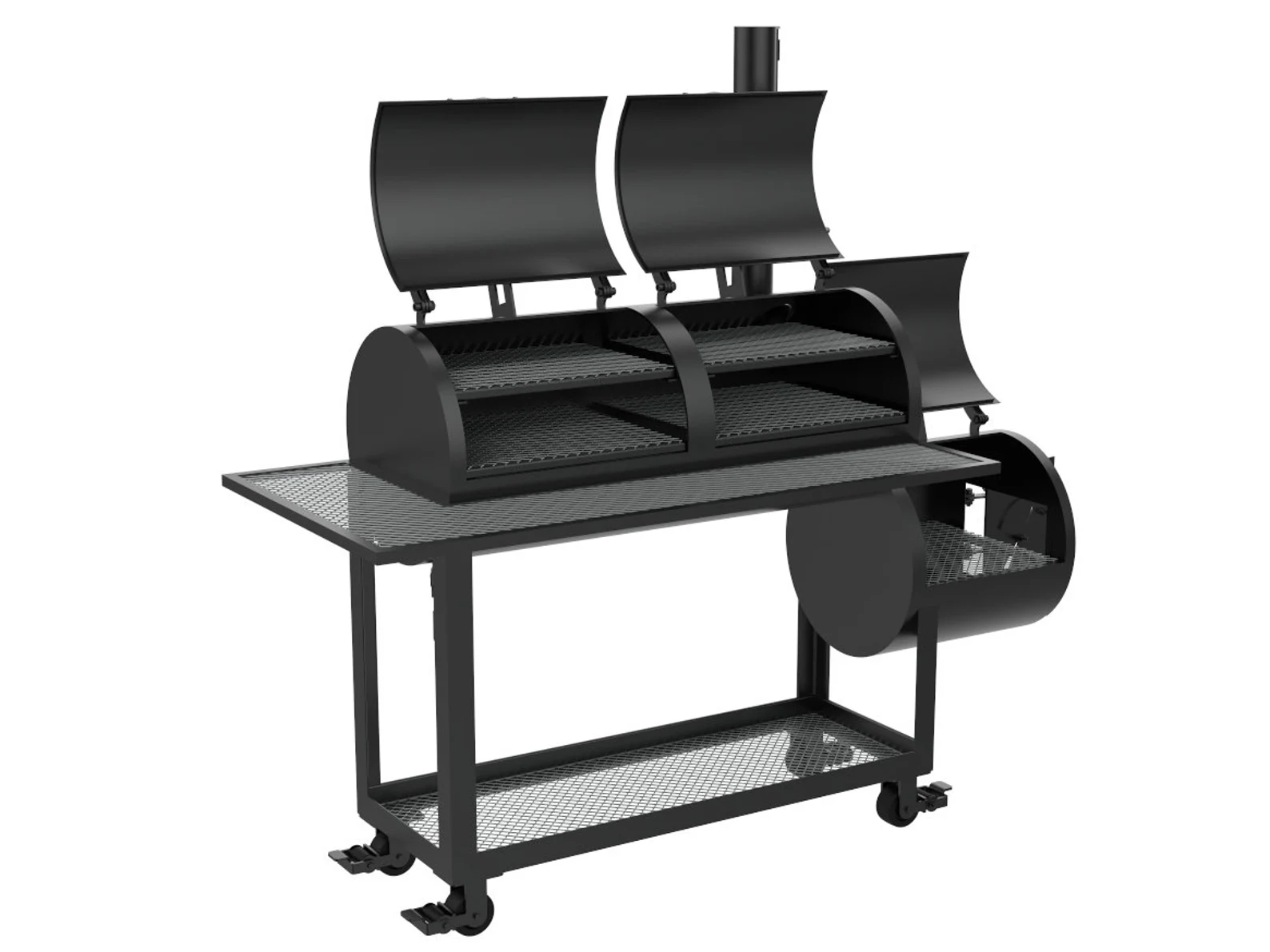

Build your own professional-grade smoker using these detailed DIY BBQ Smoker Plans, designed for fabricators, welders, and BBQ enthusiasts who want a high-performance reverse flow offset smoker.

This heavy-duty design measures 1710 mm in length, 780 mm in width, and 1150 mm in height, and is constructed from 6 mm S235JR steel plate for maximum durability, heat retention, and long-term performance.

The smoker features a 1200 mm horizontal cooking chamber paired with a 508 mm diameter x 500 mm long firebox, engineered for extended cooking sessions and improved fuel efficiency. The reverse flow system ensures even heat distribution across the cooking surface, while the integrated drainage pipe with ¾ on/off valve allows easy grease and moisture control.

Additional features include a 100 mm smokestack with damper control, dual oversized counterweighted doors for easier lifting, multiple cooking shelves across different levels, and a dedicated wood storage shelf beneath the chamber. High-resistance caster wheels and chrome spring handles ensure mobility and safe handling during operation.

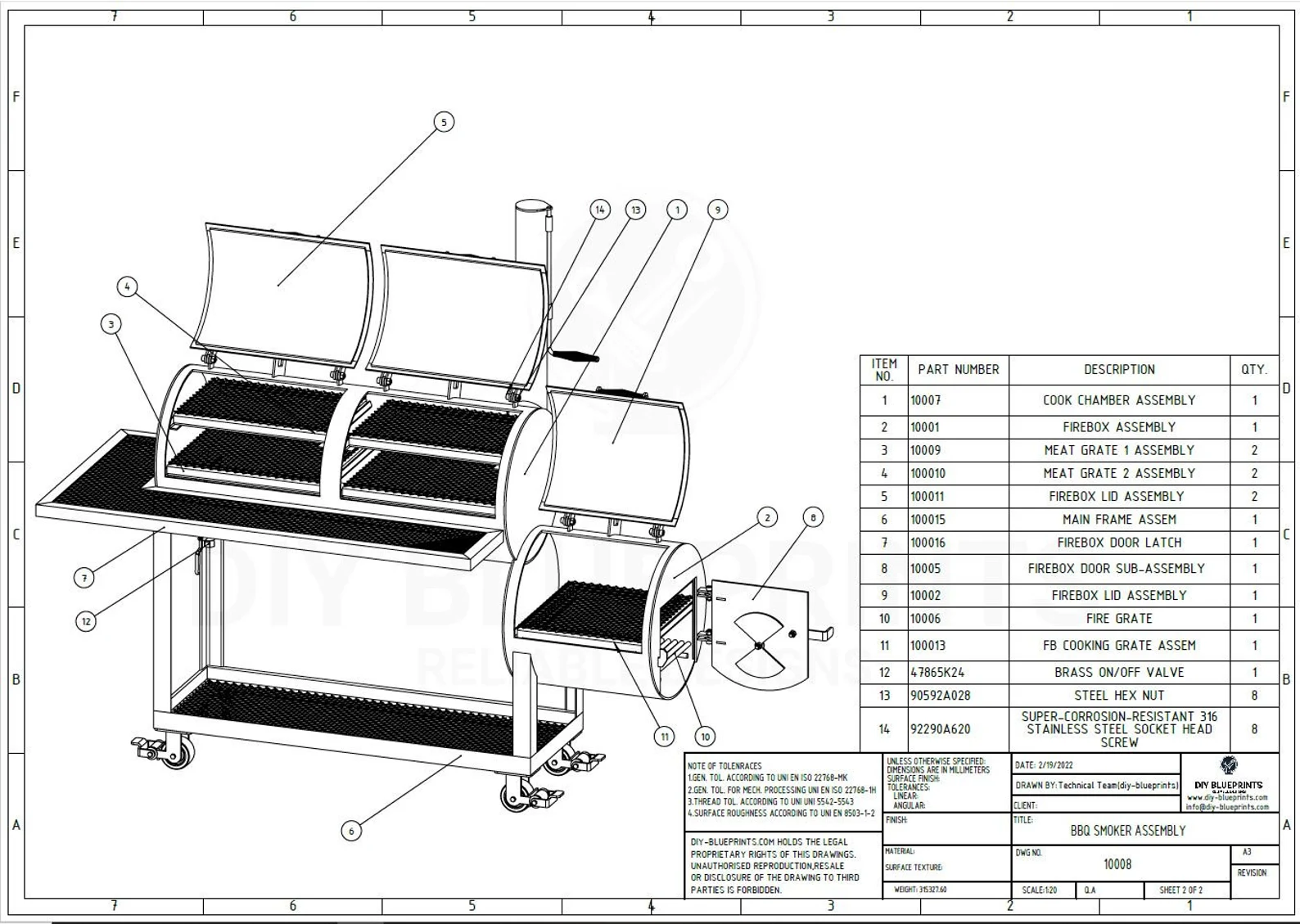

These professional smoker blueprints include everything required for fabrication, including PDF drawings, DXF cutting files, 3D STEP reference models, welding instructions, and a complete Bill of Materials (BOM). All files are engineered for precision fabrication using CNC, laser, or plasma cutting systems.

Whether you’re searching for DIY smoker plans PDF, offset smoker blueprints, reverse flow smoker plans, or BBQ smoker CAD files, this package provides a complete manufacturing-ready solution.

FEATURES

• Reverse Flow BBQ Smoker Design
• 6 mm Steel Plate Construction
• 1200 mm Cooking Chamber
• 508 mm Firebox System
• 100 mm Smokestack with Damper
• Dual Counterweighted Doors
• Multi-Level Cooking Shelves
• Wood Storage Shelf
• Drainage System with Valve
• Caster Wheels for Mobility
• Chrome Spring Handles

WHAT YOU WILL RECEIVE

• Fully dimensioned PDF drawings (mm & inches)
• DXF sheet metal cutting files
• 3D STEP reference files
• Welding instructions and specs
• Sub-assembly drawings
• Complete Bill of Materials (BOM)
• Material specifications
• Hardware & fastener list
• Manufacturing-ready fabrication package

DIGITAL FILES INCLUDED (SEO CRITICAL SECTION)

This is a 100% digital download product. No physical smoker or materials will be shipped.

You will receive a complete fabrication package including:

• PDF Smoker Plans (fully dimensioned drawings)
•  DXF Files for laser and plasma cutting
• 3D STEP Files for fabrication reference and assembly guidance
• Complete Bill of Materials (BOM)
•  Welding instructions and fabrication guide
• Sub-assembly technical drawings
• Manufacturing-ready CAD documentation

All files are available for instant download after purchase.

IMPORTANT NOTE

This is a digital product only. No physical item is included. Files are for personal fabrication use only. Redistribution or resale is strictly prohibited.
