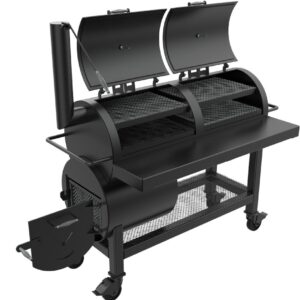

DIY BBQ Smoker Plans – Octagon Offset Smoker Blueprints & CAD Files

Looking for professional DIY BBQ smoker plans to build your own custom smoker? These detailed Octagon BBQ Smoker Plans provide everything needed to fabricate a durable, high-performance smoker using professional manufacturing drawings, CAD files, and fabrication documentation.

Designed for fabricators, welders, pitmasters, and BBQ enthusiasts, these smoker blueprints include a spacious 1512 mm horizontal cooking chamber, a heavy-duty 612 mm firebox, adjustable airflow controls, and a 100 mm smokestack with damper control for precise temperature management. Constructed from 6 mm S235JR steel plate, this smoker is engineered for exceptional heat retention, durability, and fuel efficiency.

Whether you’re searching for offset smoker plans, BBQ smoker blueprints, smoker build plans PDF, or custom smoker fabrication drawings, this complete package provides accurate dimensions and technical documentation to help you build with confidence.

The firebox features a dedicated ash removal door for easy maintenance and airflow adjustment, while stay-cool wooden handles improve safety and usability during operation. Advanced heat-flow and material analysis have been incorporated into the design to reduce heat loss, optimize airflow, and improve overall smoking performance.

These professional smoker fabrication plans are suitable for personal projects, fabrication shops, custom smoker builders, and anyone interested in constructing a high-quality homemade BBQ smoker. Every component has been carefully documented to ensure accurate manufacturing and assembly.

Technical Specifications

Overall Length: 3498 mm
Overall Width: 1542 mm
Overall Height: 1612 mm
Cooking Chamber Length: 1512 mm
Firebox Dimensions: 612 mm length × 610 mm diameter
Material: 6 mm S235JR Steel Plate
Smokestack Diameter: 100 mm
Adjustable Damper Control
Firebox Ash Removal Door
Stay-Cool Wooden Handles

What’s Included

Detailed DIY BBQ smoker plans
Fully dimensioned PDF drawings
Dimensions in inches and millimeters
Individual component drawings
Sub-assembly fabrication drawings
Welding specifications and instructions
DXF files for laser cutting
DWG fabrication files
Plasma cutting files
Complete Bill of Materials (BOM)
Material specifications
Hardware and fastener lists

Perfect For

DIY BBQ smoker builders
Fabricators and welders
Custom smoker manufacturers
Backyard pitmasters
Competition BBQ enthusiasts
Metal fabrication workshops

If you’re looking for DIY smoker plans, BBQ smoker plans PDF, offset smoker blueprints, custom smoker plans, or professional smoker CAD files, this package delivers the detailed documentation required to build a reliable and efficient smoker from start to finish.

Important: This is a digital download product. No physical smoker or fabrication kit will be shipped. All files are available instantly after purchase. These plans are the intellectual property of diy-blueprints.com and may not be resold or redistributed.
